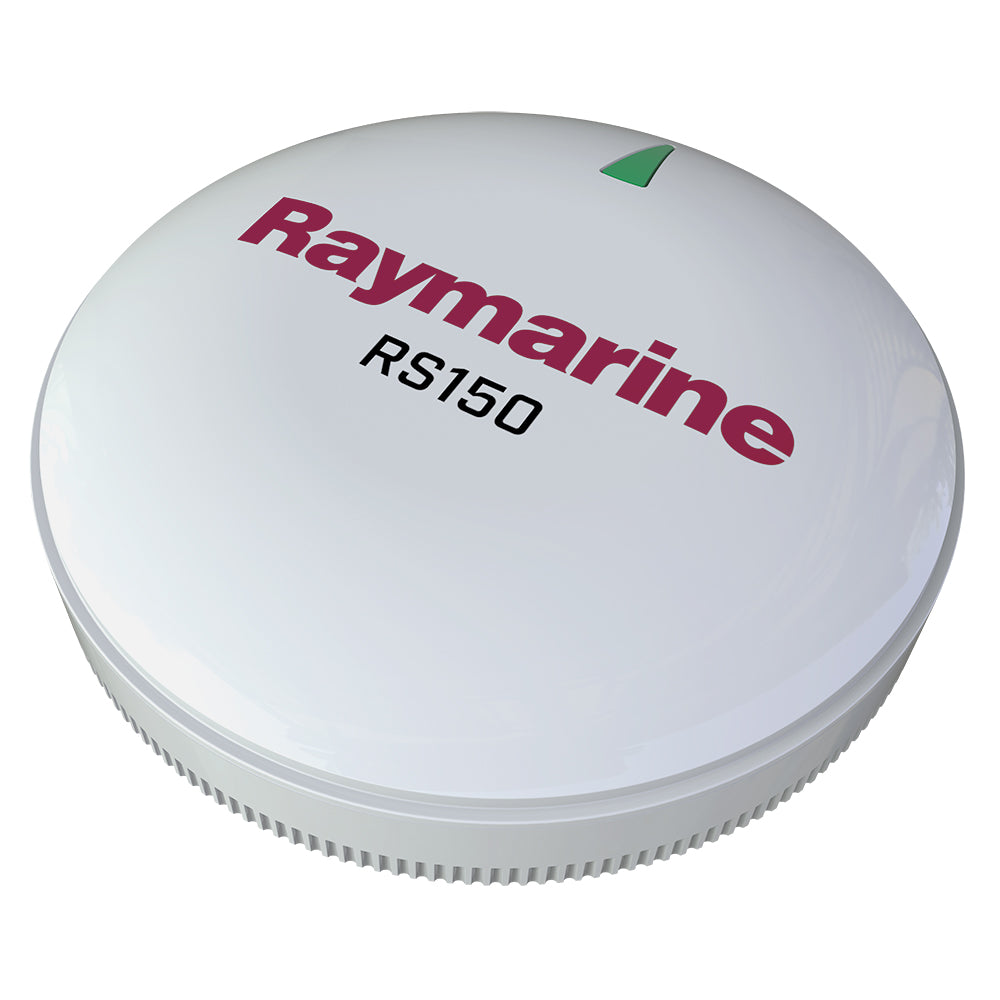

Raymarine RS150 GPS Sensor
Raymarine RS150 GPS Sensor
SKU:64281
In stock
Couldn't load pickup availability
- Genuine brand-name parts
- Ships from US warehouse
- 30-day returns
RS150 GPS Sensor The RS150 GPS is a high performance, 72-channel, remotely mounted GPS sensor for Raymarine navigation systems. The RS150 offers fast 10Hz position updates and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system. Features: 72-channel GPS receiver Fast 10Hz position updates Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support A GNSS receiver with GLONASS compatibility Low power consumption: 30mA (1 LEN) SeaTalkng and NMEA2000 compatible (using a device net adapter cable) Designed for low profile surface mounting or optional pole mounting Specifications: Nominal supply voltage: 12V D.C. Powered by N2K bus Operating voltage range: 8 - 32V DC Power consumption: 30 mA max (NMEA LEN = 1) Operating temperature: -13ºF to 131ºF (-25ºC to +55ºC) Relative humidity: max 93% Waterproof: IPx6/7 Supported connection protocols: SeaTalk ng : NMEA 2000 (certified) (via DeviceNet adaptor) Sensitivity: High sensitivity - acquisition down to -163dBm No. of channels: 72 Positioning System: GPS & GLONASS Satellite Differential Type: WAAS (United States); EGNOS (Europe); MSAS (Japan); GAGAN (India) Differential acquisition: Automatic Position accuracy (95%): Position accuracy with SDGPS (95%): Speed accuracy (95%): Time to first fix from cold start: Time to first fix from hot start: Geodetic Datum: WGS84
| Brand | Raymarine |
|---|---|
| Manufacturer part number | E70310 |
| UPC / GTIN | 723193796917 |
| Weight | 1.80 lb |
| Category | Engine & Drivetrain |
| Condition | New — genuine brand-name product |
