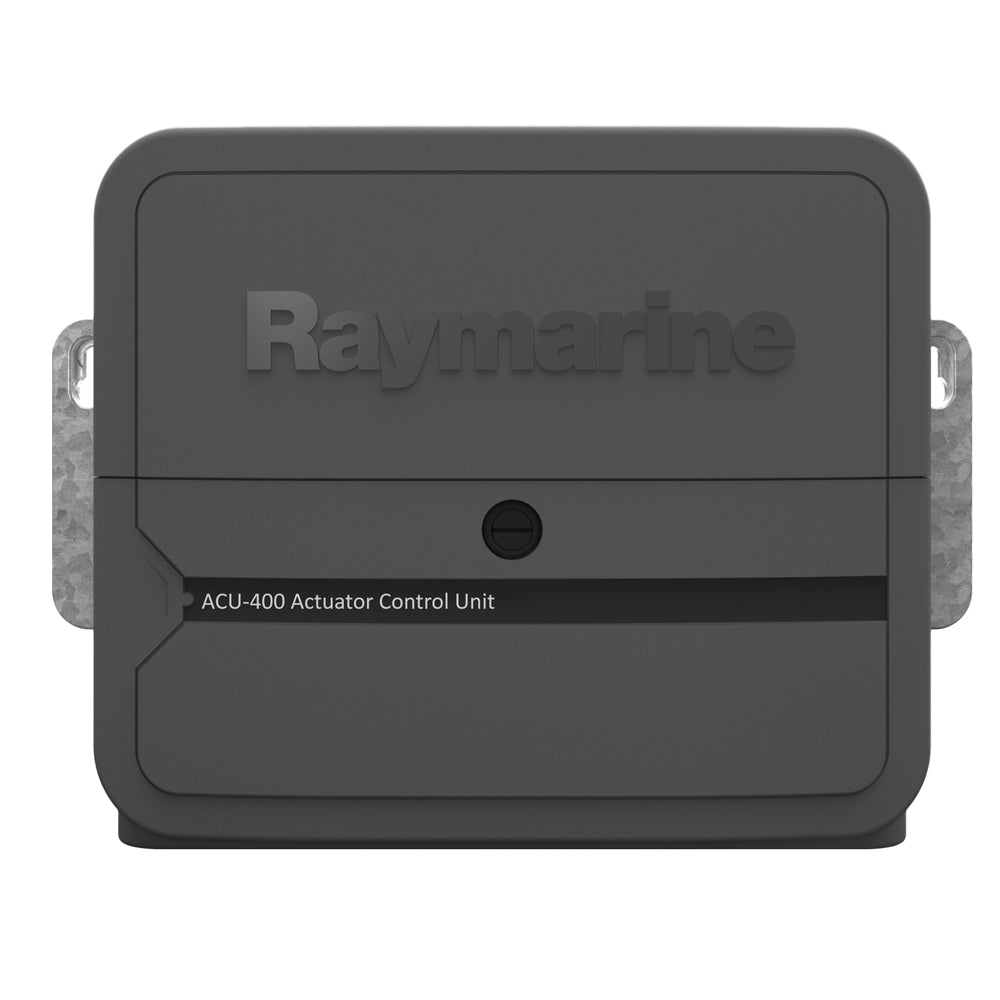

Raymarine ACU-400 Actuator Control Unit - Use Type 2 & 3 Hydraulic , Linear & Rotary Mechanical Drives
Raymarine ACU-400 Actuator Control Unit - Use Type 2 & 3 Hydraulic , Linear & Rotary Mechanical Drives
SKU:49111
Low stock
Couldn't load pickup availability
- Genuine brand-name parts
- Ships from US warehouse
- 30-day returns
Autopilot Control Unit (ACU) The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk ng bus. Choose the ACU that fits your steering system type. Drive Current Output Maximum continuous 30 Amps at supply voltage Drive Clutch Output Up to 4 Amp continuous at 12V on 12V systems Up to 4 Amp continuous at 24V on 24V systems Up to 4 Amp continuous at 12V on 24V systems Connections Includes the M81105 Rotary Rudder Reference Sleep switch Power Drive motor Drive clutch Ground Digital Input / Output (DIO) Nominal supply voltage 12 V or 24 V Operating voltage range 10.8V to 31.2V dc Power Consumption (standby) - Main Power Supply 300 mA (12/24V) Power Consumption (standby) - SeaTalk ng Power Supply 20 mA (12V) SeaTalk ng LEN (Load Equivalency Number) 1 SeaTalk ng Power Out 3 Amp at 12V (fuse protected at 3 Amp) Data Connections SeaTalk ng Installation Environment Operating Temperature: -20°C to +55°C (-4°F to +131°F) Storage Temperature: -30°C to +70°C (-22°F to +158°F) Relative Humidity: MAX 93% Waterproof rating Drip resistant Dimensions (W x H x D) 285mm x 211.5mm x 64.5mm (11.2 in x 8.3 in x 2.5 in) Weight 2.2kg (4.84lbs) Conformance Europe: 2004/108/EC Australia and New Zealand: C-Tick, Compliance Level 2
| Brand | Raymarine |
|---|---|
| Manufacturer part number | E70100 |
| UPC / GTIN | 723193768921 |
| Weight | 7.00 lb |
| Category | Suspension & Steering |
| Condition | New — genuine brand-name product |
