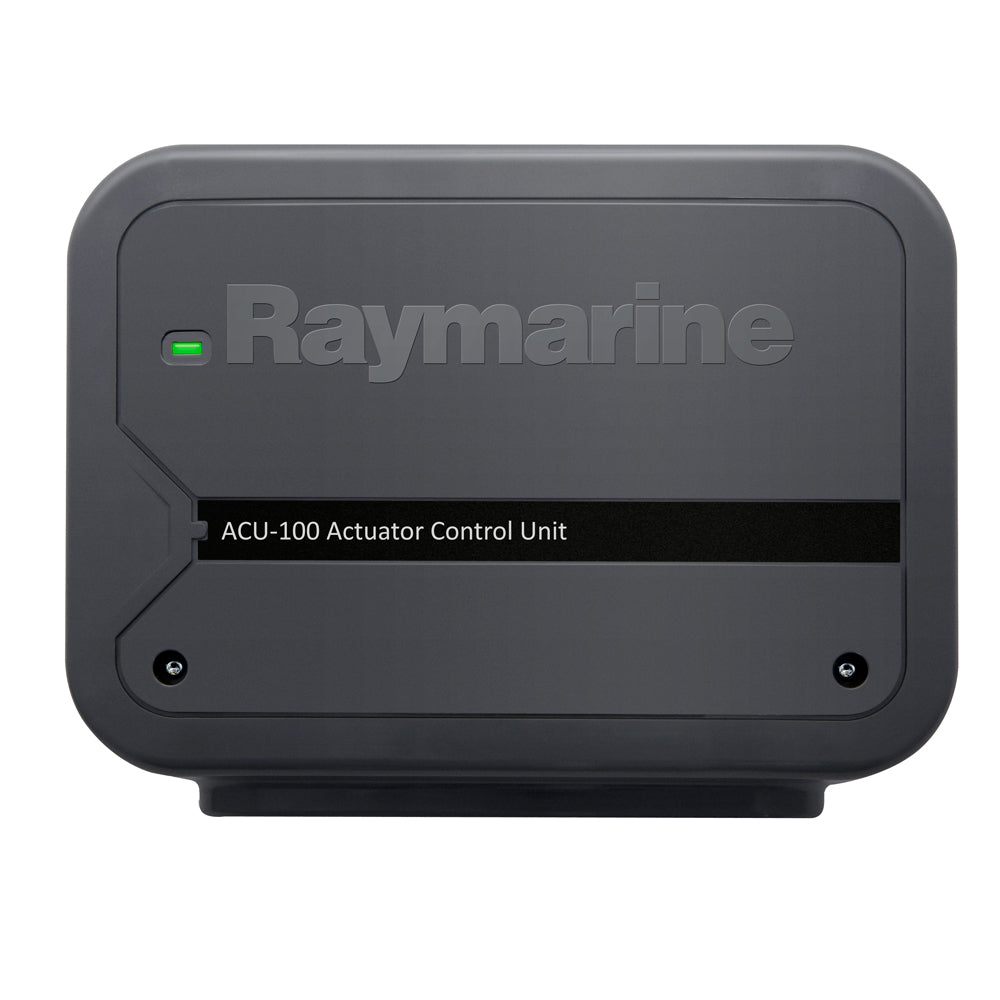

Raymarine ACU-100 Actuator Control Unit
Raymarine ACU-100 Actuator Control Unit
SKU:49108
Low stock
Couldn't load pickup availability
- Genuine brand-name parts
- Ships from US warehouse
- 30-day returns
Autopilot Control Unit (ACU) The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk ng bus. Choose the ACU that fits your steering system type. Drive Current Output Maximum continuous 7 Amps at supply voltage Drive Clutch Output No clutch connection Connections Rudder reference sensor Power Drive motor Ground Nominal supply voltage 12 V Operating voltage range 10.8V to 15.6V dc Power Consumption (standby) - Main Power Supply 300 mA (12V) Power Consumption (standby) - SeaTalk ng Power Supply No power supply to SeaTalk ng SeaTalk ng LEN (Load Equivalency Number) 1 SeaTalk ng Power Out No power supply to SeaTalk ng Data Connections SeaTalk ng Installation Environment Operating Temperature: -20°C to +55°C (-4°F to +131°F) Storage Temperature: -30°C to +70°C (-22°F to +158°F) Relative Humidity: MAX 93% Waterproof rating Connector Panel: IPX2 Drive Electronics: IPX6 Dimensions (W x H x D) 180mm x 140mm x 52mm (7.1 in x 5.5 in x 2.0 in) Weight 0.6 kg (1.32lbs) Conformance Europe: 2004/108/EC Australia and New Zealand: C-Tick, Compliance Level 2
| Brand | Raymarine |
|---|---|
| Manufacturer part number | E70098 |
| UPC / GTIN | 723193768907 |
| Weight | 2.00 lb |
| Category | Suspension & Steering |
| Condition | New — genuine brand-name product |
