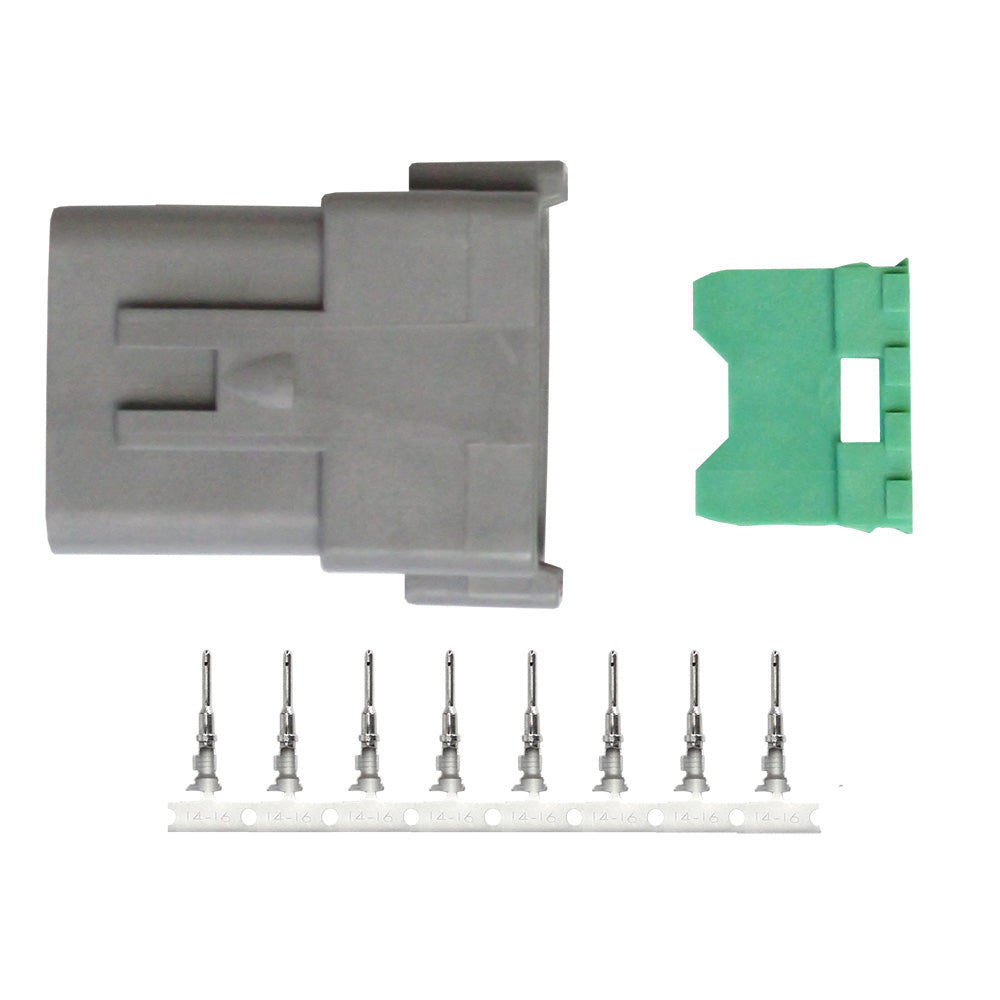

Pacer DT Deutsch Receptacle Repair Kit - 14-18 AWG (8 Position)

DT Deutsch Receptacle Repair Kit - 14-18 AWG (8 Position) Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications. Features: Packs include all parts needed to assemble a connector One to two extra terminals Cavity plugs to seal open circuits Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Compliances: Ingress Protection (IP) Level: IP68 and IP6K9K EU RoHS/ELV Standard UL-94 Recognized Characteristics: Wedge locks ensure contact alignment and retention Redundant Silicone Seals Hand-insertable and removable contacts Technical Specifications: Number of Cavities: 8 Housing: Rectangular receptacle, plastic reinforced with glass fiber Contact Size: 16 (13 amp) Wire Size: 14 AWG Holds Pin/Socket: Pins Operating Temperature: -55°C to 125°C Contents:  (1) 8 pos. receptacle (1) 8 pos. wedge lock (10) pins (4) cavity plugs
