OceanLED OceanConnect Junction Box
OceanLED OceanConnect Junction Box
SKU:102593
Low stock
Couldn't load pickup availability
- Genuine brand-name parts
- Ships from US warehouse
- 30-day returns

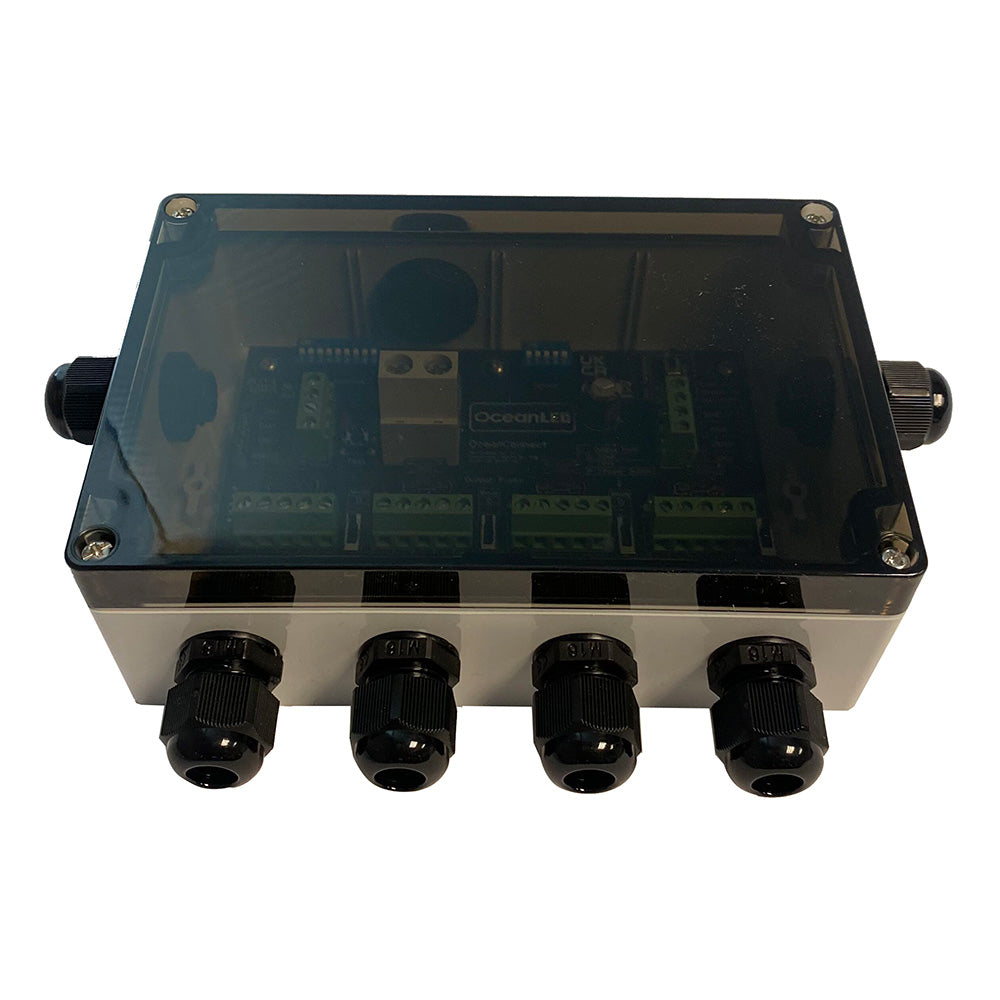

OceanConnect Junction Box The OceanConnect is a waterproof (IP66) DMX-controlled, low-voltage DC (9–32V) junction box. The OceanConnect provides one power unit and four individually switched fused power outputs (6 amps per output) to connect DC-powered lights or other DC-switched units. The unit also supports powering and individual addressing of up to four DMX-controlled OceanLED X-Series lights. Contents: 1x OceanConnect unit, including 4x 7.5A blade fuses 4x mounting screws 1x twin entry cable grommet 4x blanking plugs Specifications: Voltage: 12/24V DC (max 32V DC) Input/Output Cable Glands: 1x M20-Power In, 4x M16 - DMX In/Out, and Lights Out Power Input Terminals Wire Gauge: 8-20 AWG DMX In/Out, and Lights Out Terminals Wire Gauge: 12-28 AWG Light Outputs: DMX & Power- 4 x individual fused 6 Amp each max DMX Input: 1x DMX Input (to connect the DMX controller) DMX Output: 1x DMX Output (to link junction boxes in the chain) DMX Terminator: Onboard DMX terminator with an on/off switch Physical Specifications Dimensions (Including Cable Glands): 228mm x 174mm x 60mm (9" x 6.8" x 2.3") Enclosure: IP66-robust polycarbonate Weight: 270g
| Brand | OceanLED |
|---|---|
| Manufacturer part number | 013204 |
| UPC / GTIN | 5051803009092 |
| Weight | 1.60 lb |
| Category | Lighting |
| Condition | New — genuine brand-name part |
