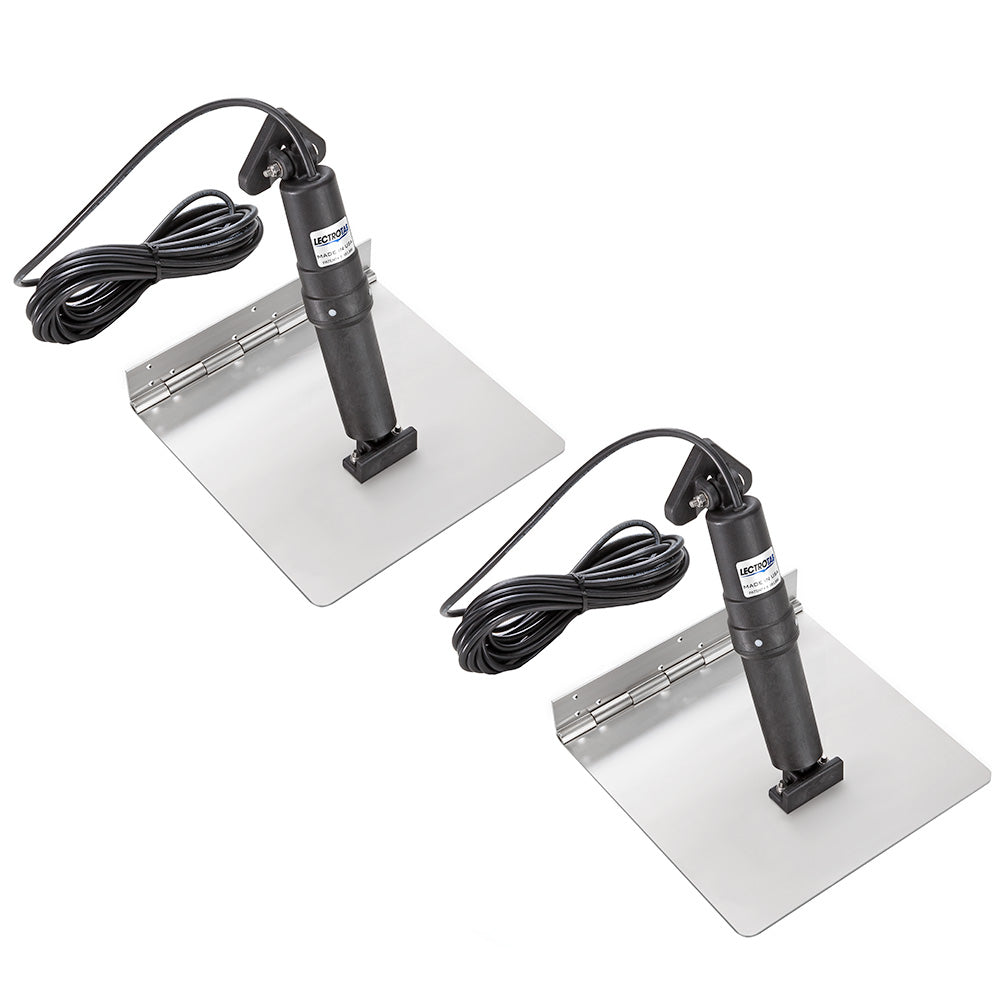

Lectrotab XKA Stainless Steel Trim Tab - 12 x 24

XKA Stainless Steel Trim Tab - 12 x 24  The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding.  Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat.  Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket.  *Control switch not included  Features: Continuous rolled and pinned hinge provides added strength and eliminates the need for welding Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications: Trim Tab Size (L x W) - 12" x 24" (30 x 61 cm) Boat Length - 28' to 48' (8.5 to 14.5 M) Trim Tab Material - 12 gauge, 304 Stainless Steel  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) In the Box: Two (2) Stainless Steel tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as an Individual  This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
