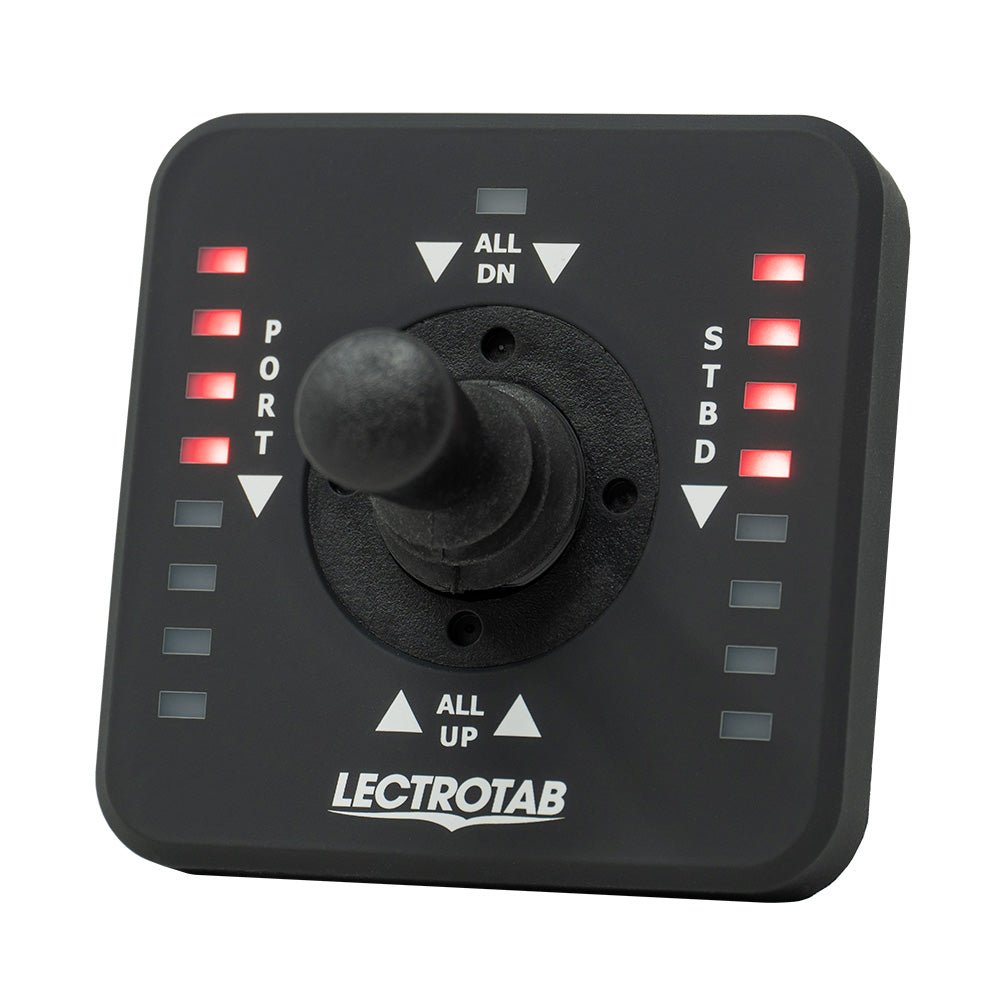

Lectrotab Joystick LED Trim Tab Control

Joystick LED Trim Tab Control Lectrotab’s Joystick LED control incorporates features requested by boat owners to provide user-friendly control for a more enjoyable boating experience. Features: Single “Joystick” control NMEA 2000 compatible LED display of each trim tab position Microprocessor-based trim tab control with LED tab position indicators NMEA 2000 compatible with JLC-NMEA adapter Move both tabs up or down simultaneously with a single motion Dual station ready – just add a second JLC-11 and JR-* cable (sold separately) Automatic return to last tab position if the ignition key is turned off and back on again Completely sealed, completely waterproof, and will not deteriorate in sunlight Automatic tab retraction and calibration with key or accessory switch off Easy upgrade from any of our Lectrotab controls No external power module required LED tab position indicators dim automatically in darkness and brighten in sunlight Single or Dual Actuator per tab Operates on 12 or 24 VDC systems Specifications: Display Color: Black Number of Stations/Actuators: Single or Dual Station/1 or 2 Actuator/tab Overall Width: 3.0"/77mm Overall Height/Thickness: 3.0" (77mm)/2.0" (50mm) Mounting Hole Cutout (Diameter): 2.625"/66.7mm DC Voltage: 12/24 Fuse Size Power Input (1 Actuator Per Tab): 12 VDC-15 or 20 AMPs 24 VDC = 10 AMPs Fuse Size Aux. (Must Connect): 1 to 2 AMPs This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
