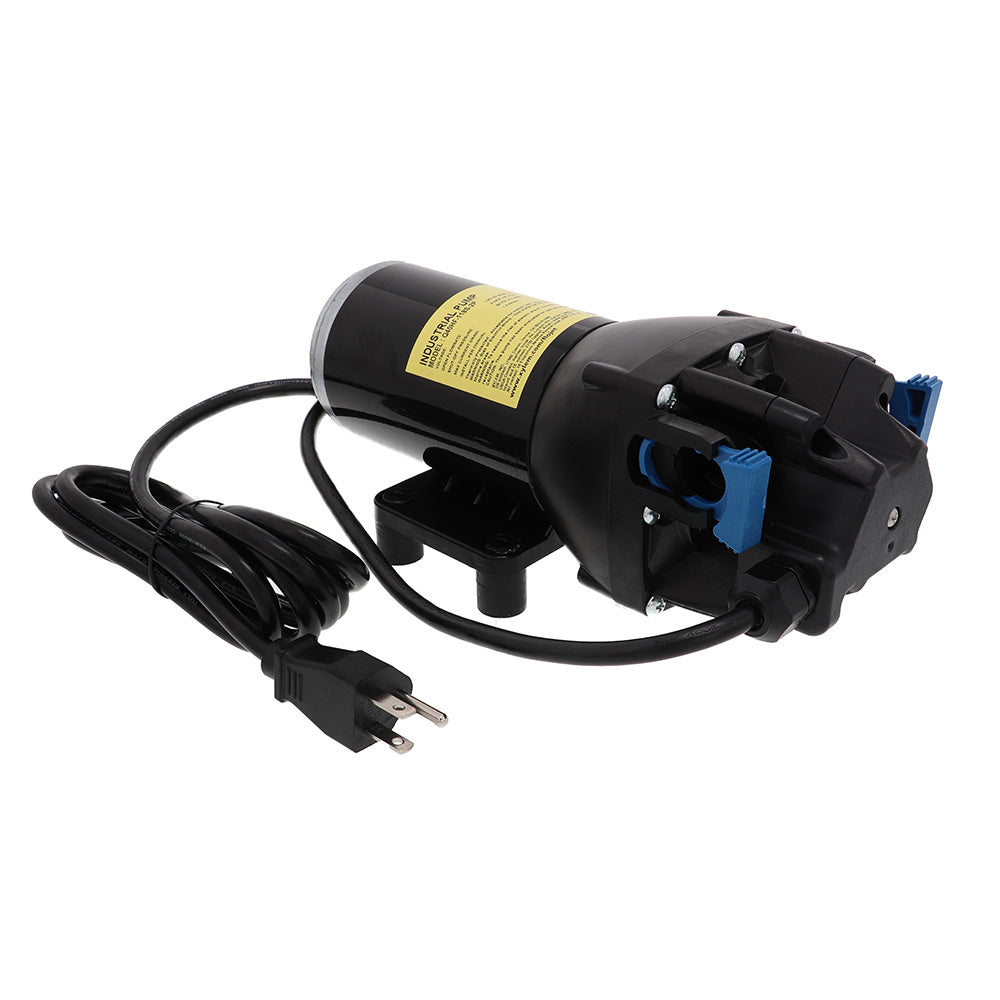

Flojet VersiJet Industrial Diaphragm Pump - 115V, 4 GPM, 60 PSI

VersiJet Industrial Diaphragm Pump - 115V, 4 GPM, 60 PSI VersiJet Series pump is engineered for applications such as liquid transfer, spraying, cooling, circulation, filtration, and dispensing. Each pump is constructed with a glass-filled polypropylene upper housing, coated motor, co-molded Santoprene diaphragm, and EPDM check valves and seals to maximize durability and service life. The integrated pressure switch ensures automatic operation, while the self-priming design allows for up to 8 feet of dry lift. VersiJet pumps can run dry without damage, and their quiet, smooth performance minimizes disruptions in busy work areas. Quick-connect ports streamline installation and maintenance, so operators can attach or remove hoses and fittings quickly without tools for fast pump swaps or service. It delivers up to 4 GPM and handles a maximum pressure of 60 PSI. This pump is self-priming up to 8 feet, and it includes a built-in pressure switch that automatically shuts off the pump when system pressure reaches 60 PSI. Upgrade your pumping system today and keep your operation flowing without interruptions! Benefits: Self-Priming: Draws liquid efficiently with up to 8 feet (2.4 meters) of dry prime, allowing the pump to pull fluid from the source without manual priming. Runs Dry Without Damage: Designed to operate safely even when the fluid supply is interrupted, meaning the pump will not suffer internal damage if left running without liquid, giving operators added protection from accidental dry runs and helping prevent costly downtime. Integrated Excessive Pressure Protection: A pressure switch shuts off the pump automatically when system pressure reaches 60 PSI. This feature helps prevent over-pressurization, protecting downstream equipment and extending pump life by minimizing unnecessary wear. Quiet, Efficient Operation: Reduces noise and energy usage through a four-chamber diaphragm design and noise-dampening baseplate. Reliable Performance: Designed for industrial fluid transfer and spraying in harsh environments. Long-Lasting Chemical-Resistant Construction: Features glass-filled polypropylene housing and EPDM seals for enhanced chemical resistance and durability. Easy Installation: Quick-connect fittings speed up maintenance and replacement. Applications: Liquid Transfer Spraying Cooling, Circulation Filtration Dispensing Specifications: Model: Q40FF-118S-2P Open Flow Rate: 4 GPM (15 LPM) Pressure Switch Cut Off: 60 PSI (4.1 BAR) Max Operating Pressure: 60 PSI (4.1 BAR) Max Inlet Pressure: 30 PSI (2.2 BAR) Self-Priming Capability: Up to 8 ft (2.4 m) Run-Dry Capable: Yes Nominal Voltage: 115 VAC Voltage Range: 104–126 VAC Max Current Draw: 1.3 Amps @ 60 PSI Leads: 14" (355mm) 18 AWG Wire Connection: Stripped Wire Duty Cycle: Intermittent Port Fittings: 2 x 3/4" (19 mm) straight hosebarb Fluid Temperature Range: 32ºF – 140ºF (0ºC – 60ºC) Internal Bypass: Yes Self-Priming Capability: Up to 8ft (2.4m) Dry Prime Run-Dry Capable: Yes Upper Housing: Glass-Filled Polypropylene Lower Housing: Cast Aluminum Diaphragm: Santoprene Check Valve Retainer: Polypropylene Pump Head: Seals: EPDM, Fasteners: Stainless Steel Baseplate: Nylon Rubber Feet Dimensions: 11.25 x 5.47 x 5.07 in (286 x 139 x 129 mm) Weight: 5.2 lbs (2.4 kg) Mounting: Horizontal (preferred) or vertical with the pump head down Certifications: UR listed; IPX6 rated Replaces Flojet Models; 04300042A, 04300043A
