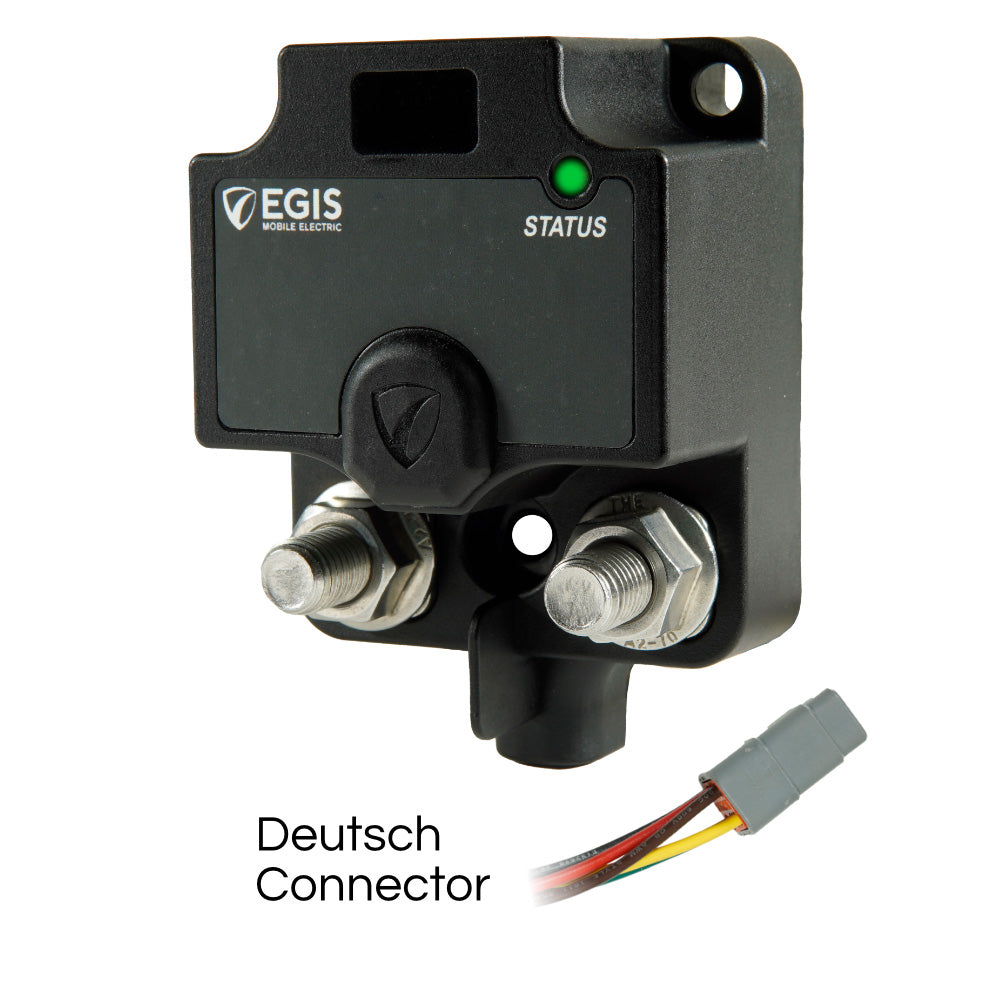

Egis XD Series Single Flex 2 Relay-ACR - DTM Connector

XD Series Single Flex 2 Relay-ACR - DTM Connector This Egis relay provides a 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. The relay is expandable with link and cross-link busbars to additional dual, triple, or single XD relays. Also, the relay supports 2 or 3 battery systems with standard busbar interconnect accessories. Applications:  Improved replacement/alternative to legacy solenoids and remote battery switches; Wire-for-wire compatible with Blue Sea ML-solenoid and ML-remote battery switch products Forward-facing input studs make landing large wires easily, and a protective cover with integrated label recesses enables easy identification while providing anti-contact short protection Features: Bullet-proof construction, sealed to IP67/IP6K9K, and high temperature electronics and materials allow mounting anywhere; Stainless steel cable lug studs; Large mounting holes accept 1/4-20 / M6 attachment hardware Simple programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers Plug-and-play compatible with Legacy competitor products: Single, dual, and triple relay options are available with DTM/ATM connector pins for pin compatibility with ML Series bi-stable relays 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features: Led Status Display The easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED.  40 Circuit Label Sheet Included Convenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications.  Protective Cover Included Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Integrated Vent High-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments. Stainless Hardware  Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts. Programmable Via dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications.  Smaller Footprint XD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .
