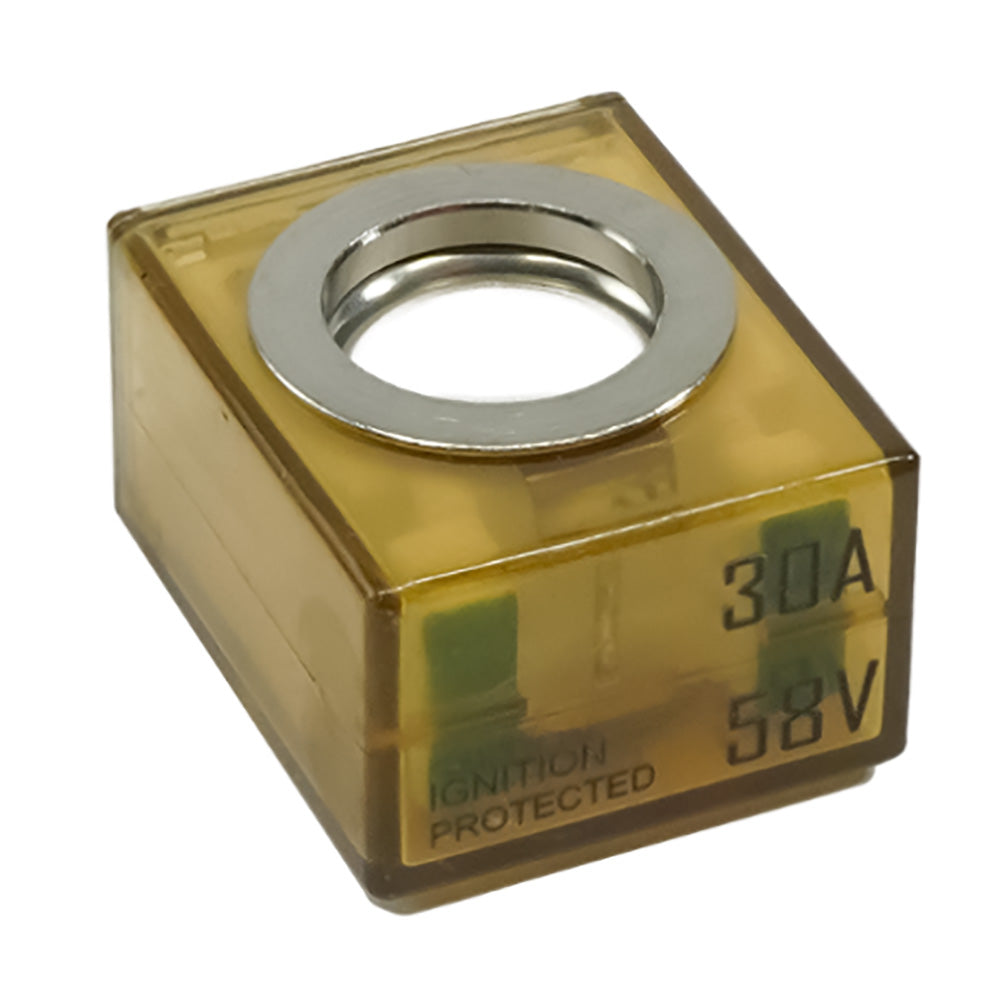

Egis MRBF Terminal Fuse - 30 Amp

MRBF Terminal Fuse - 30 Amp Transparent easy visual of fuse status Ignition-protected SAE/J1171-ISO8846 High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks Color-coded for easy ID of amperage rating Features: Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems. Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation 58 Vdc Rating: easily supports 12 to 48V nominal applications. High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty: We stand behind our product's ability to meet your needs. Specifications: Continuous Current (Amps): 30 Max Voltage (VDC): 58 Interrupt Rating @ 14 VDC (Amps): 10,000 Interrupt Rating @ 48Vdc (Amps): 5,000 Interrupt Rating @ 58Vdc (Amps): 2,000 Ingress Protection: IP66
