Connect-Ease 24V Trolling Motor Connection Kit RCE24VB5CHK | 5-Foot Series Connector for Two 12V Separated Batteries with Onboard Charging Charger Leads | Marine Grade Wires | Batteries NOT Included
Connect-Ease 24V Trolling Motor Connection Kit RCE24VB5CHK | 5-Foot Series Connector for Two 12V Separated Batteries with Onboard Charging Charger Leads | Marine Grade Wires | Batteries NOT Included
SKU:CONCE24VB5CHK
In stock
Couldn't load pickup availability
- Free shipping on $70+
- Ships from US warehouse
- 30-day returns
The Connect Ease RCE24VB5CHK is a 24v trolling motor connection kit.
Key features

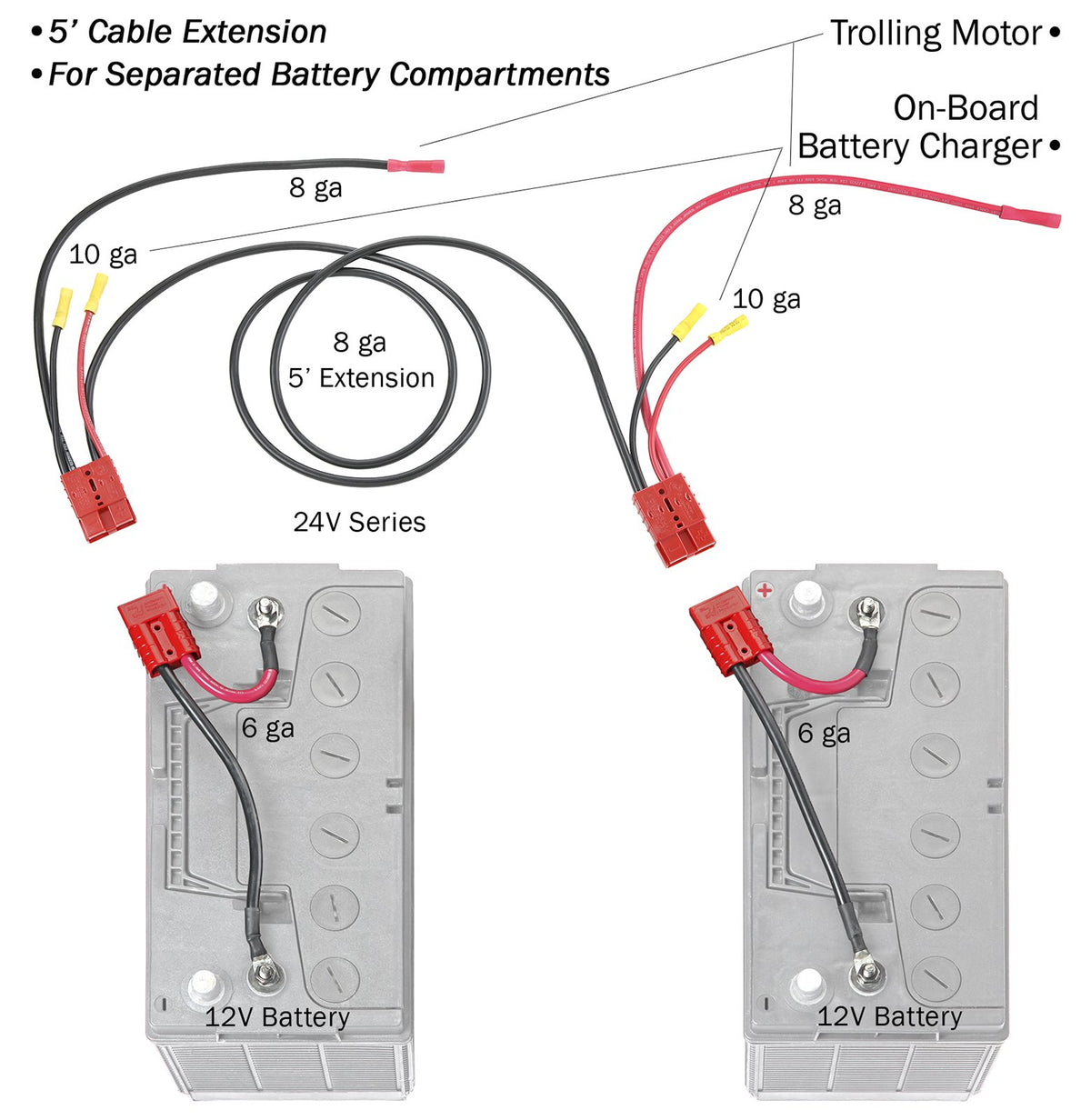

- Built For Separated Battery Compartments: A 5-foot 8 AWG extension bridges two 12V batteries wired in series when they sit in separate compartments -- common on Lund, Crestliner, Pro Craft, and similar layouts.

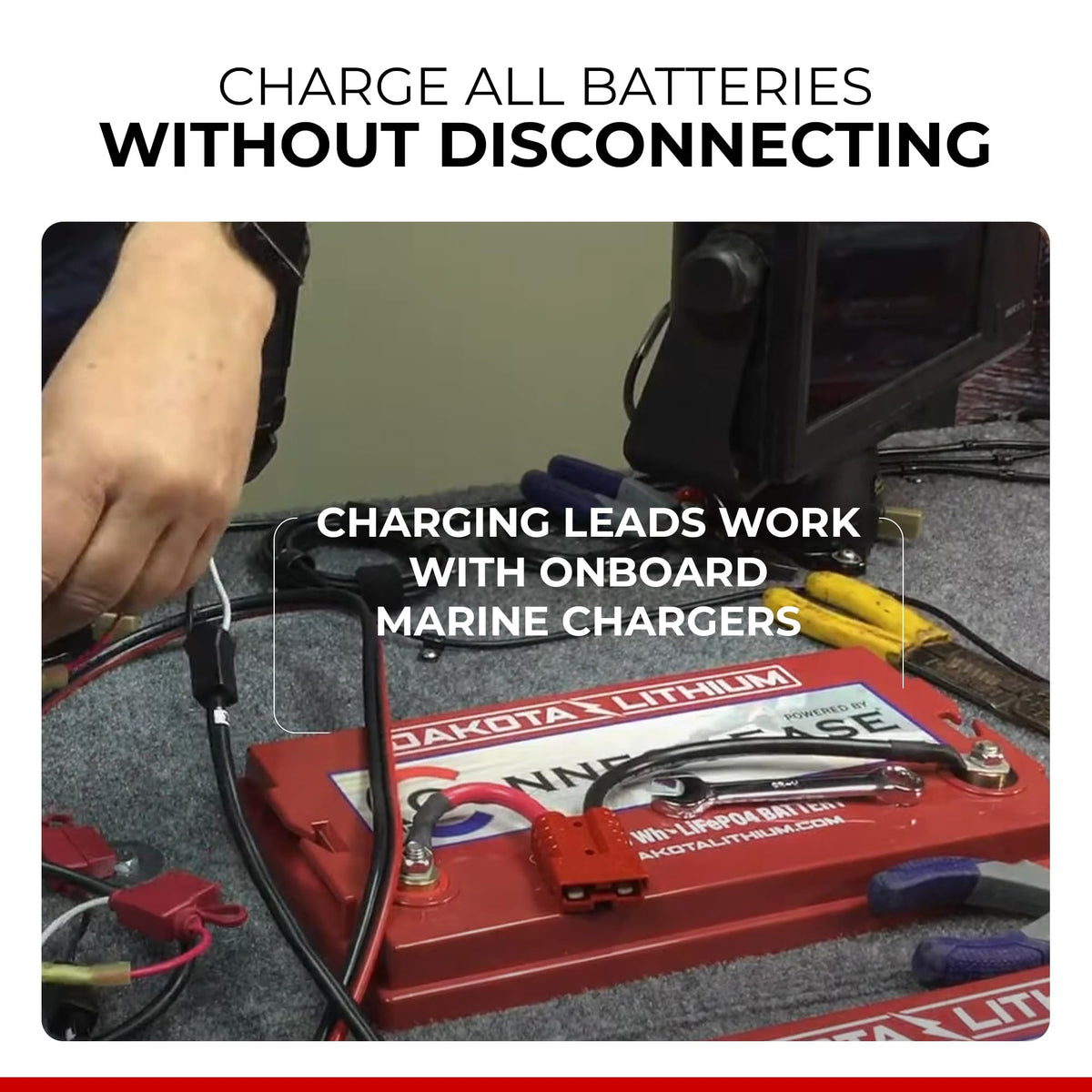

- Onboard Charging Stays Connected: Pre-wired 10 AWG charger leads tie into a multi-bank marine charger so both batteries top off overnight without disconnecting the trolling motor harness.
- CORRECT SERIES WIRING, EVERY TIME: The bridge connector wires your two 12V batteries in series for a true 24V system -- no reversed polarity, no guesswork on which terminal goes where.
- 6 AWG BATTERY LEADS, 8 AWG MOTOR LEADS: UL1426 tinned copper wire and heat-shrink-sealed splices rated to 50 AMP, built to hold up in saltwater and freshwater alike.

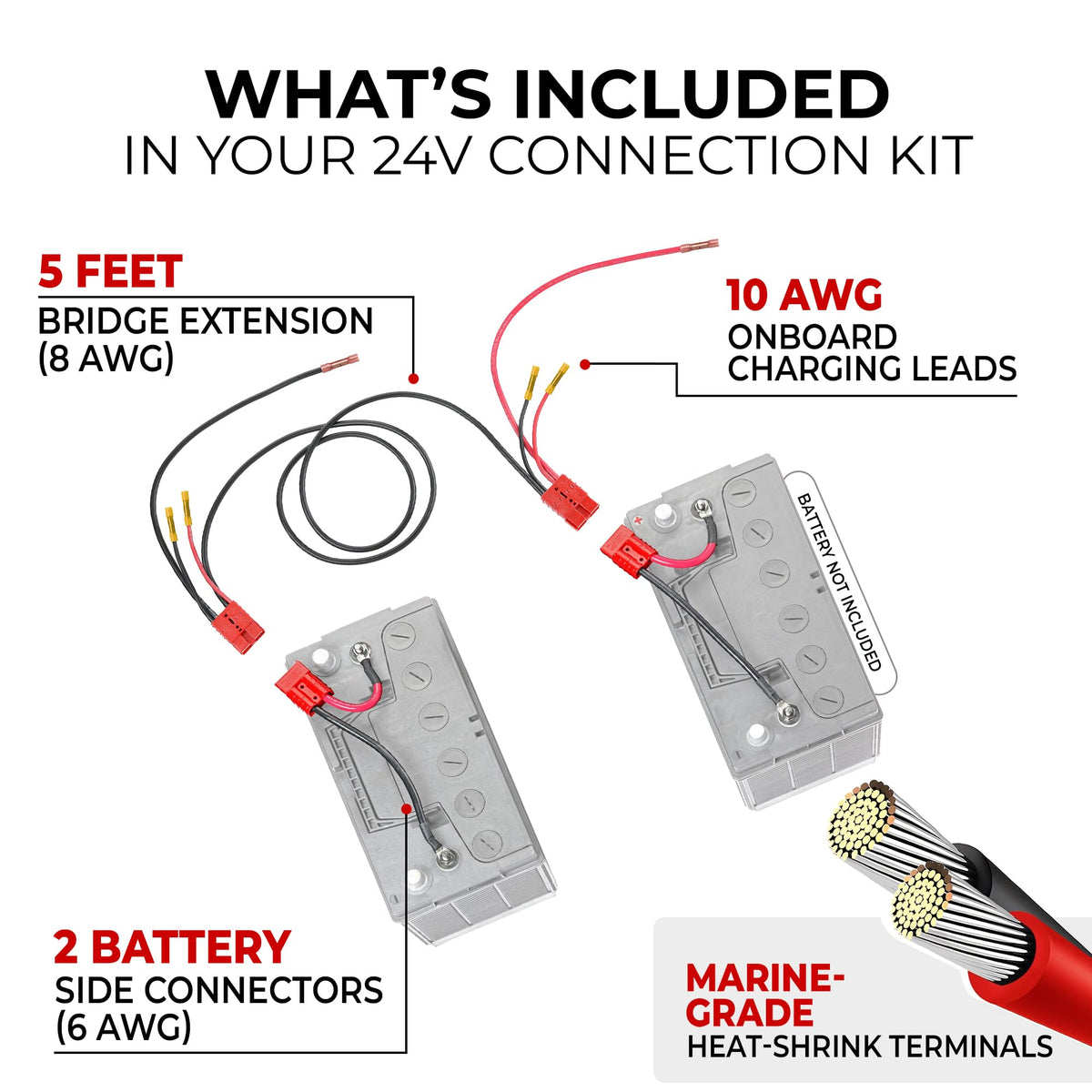

- WHAT'S IN THE BOX: 24V bridge connector with 5-foot extension, two 6 AWG battery-side connectors, 10 AWG onboard charger leads, and terminal/splice hardware for a tool-free install.
Product details
Connect-Ease 24V Series Trolling Motor Connection Kit with Onboard Charging — RCE24VB5CHK This kit wires two 12V batteries in series to run a 24V trolling motor, with a 5-foot 8 AWG extension built in for boats where the batteries sit in separate compartments — a common layout on Lund, Crestliner, Pro Craft, and similar hulls. The bridge connector handles the series wiring correctly every time, so there's no guesswork about polarity when you're reconnecting batteries dockside. Onboard charger leads (10 AWG) are pre-wired into the harness, so both batteries can charge through a multi-bank marine charger without disconnecting the trolling motor side. Construction throughout is UL1426 tinned copper wire with heat-shrink-sealed butt splices, 6 AWG on the battery-side connectors and 8 AWG on the trolling motor extension, rated to 50 AMP. What's in the box 24V bridge connector with 5-foot, 8 AWG extension cable 2 x battery-side connectors, 6 AWG 10 AWG onboard charger leads, pre-wired Terminal and splice connections Compatible with lithium and deep-cycle batteries. Batteries are not included. Made in the USA by Connect-Ease.
Specifications
| Brand | Connect Ease |
|---|---|
| Manufacturer part number | RCE24VB5CHK |
| Part type | Cable Assembly |
| UPC / GTIN | 854996005415 |
| Weight | 1.40 lb |
| Dimensions (L × W × H) | 9.8 × 6.5 × 1.3 in |
| Category | Marine & Boating |
| Condition | New |
| Returns | 30-day returns on unused items |
