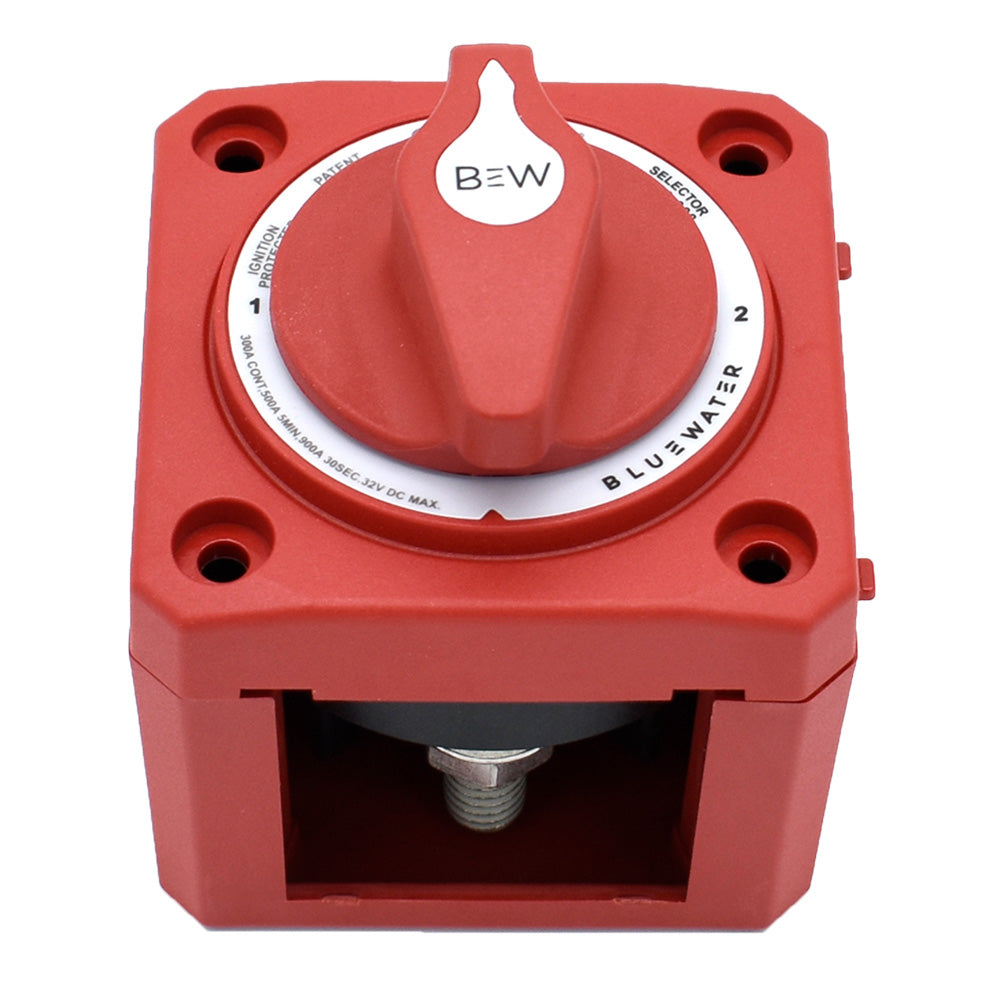

Bluewater OFF/1/2 Battery Switch - Surface Mount - Red

OFF/1/2 Battery Switch - Surface Mount - Red This 1/2/Off switch offers seamless selection between two power sources, with an Off position for isolation. It’s a reliable solution for switching between primary and secondary batteries in compact or mobile applications, such as boats, RVs, or service vehicles. Ignition-protected and safe for use aboard gasoline-powered boats, the 1/2/Off switch is built for flexibility with a case design that supports surface, front panel, or rear panel mounting.  To ensure lasting performance, the switch features 3/8″-16 tin-plated copper studs for strong conductivity and corrosion resistance, compatible with both 3/8″ and M10 ring terminals. A 7/8″ stud length accommodates multiple cable terminals when needed. Constructed from marine-grade, non-corrosive metals and a reinforced polycarbonate housing, it’s made to endure harsh environments. Tactile knob textures allow you to identify the position by feel, and both international ON/OFF legends and an icon label set are included for easy circuit labeling. Specifications: Continuous Rating: 300 Amps DC Intermittent Rating: 500 Amps DC (5 min) Cranking Rating: 900 Amps DC (30 sec) Max Voltage: 32VDC Cable Size: 4/0 AWG
