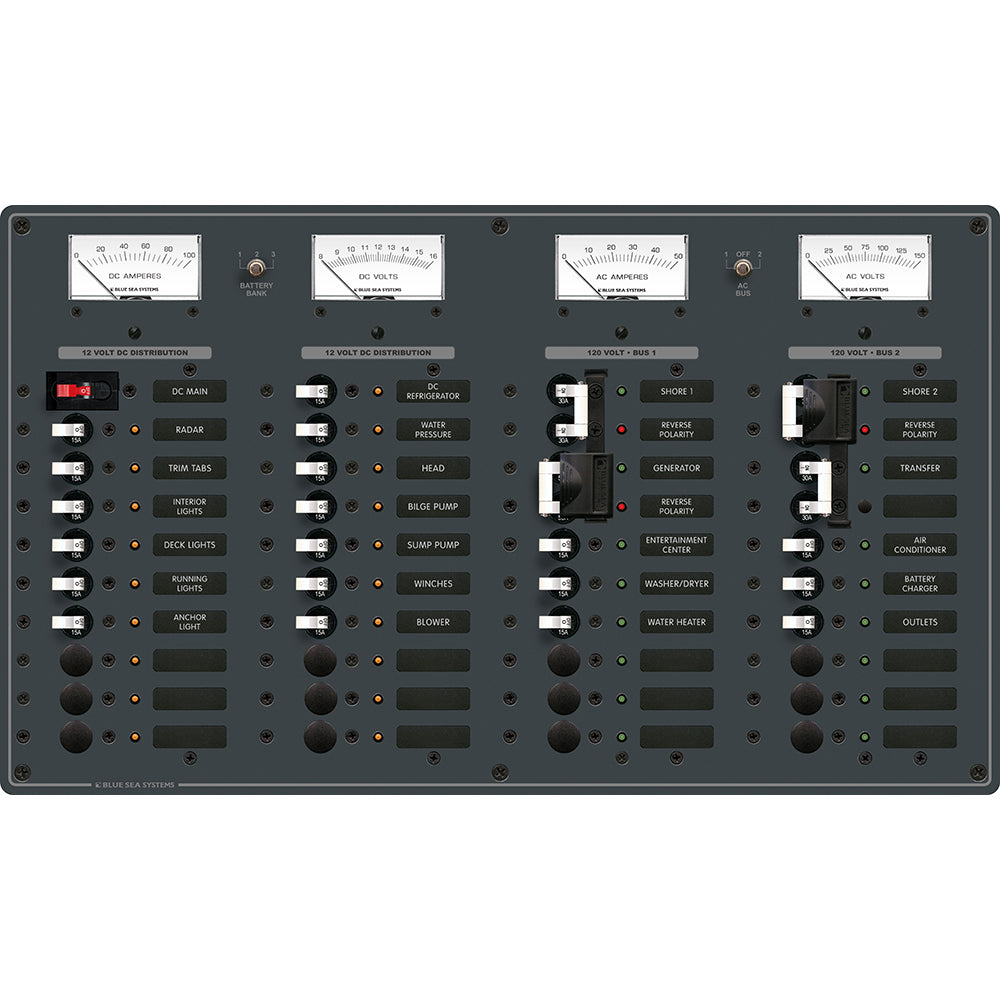

Blue Sea 8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches

8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches Features: Includes set of 30 common AC and 30 common DC labels All AC and DC buses installed, fully pre-wired Label backlighting pre-installed All LEDs installed Maximum panel Amperage 100 Amperes DC 50 Amperes AC AC Features: Two separate AC load groups with transfer switch to combine into one load group Switch allows Ammeter and Voltmeter to read either AC load group Reverse polarity indicators on both AC load groups Ready for installation of optional 4031 AC Isolation Cover 9353, 0-150 Volt AC Voltmeter 9630, 0-50 Amp AC Ammeter DC Features: 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits 8003, 8-16 Volt DC Voltmeter 8017, 0-100 Amp DC Ammeter Specifications: AC Positions: Source Selectors +12 DC Positions: Main +19 120 Volts AC 12 Volts DC (3) 30A - (1) 50A - (6) 15A AC Circuit Breakers (1) 100A - (13) 15A DC Circuit Breakers *Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .
