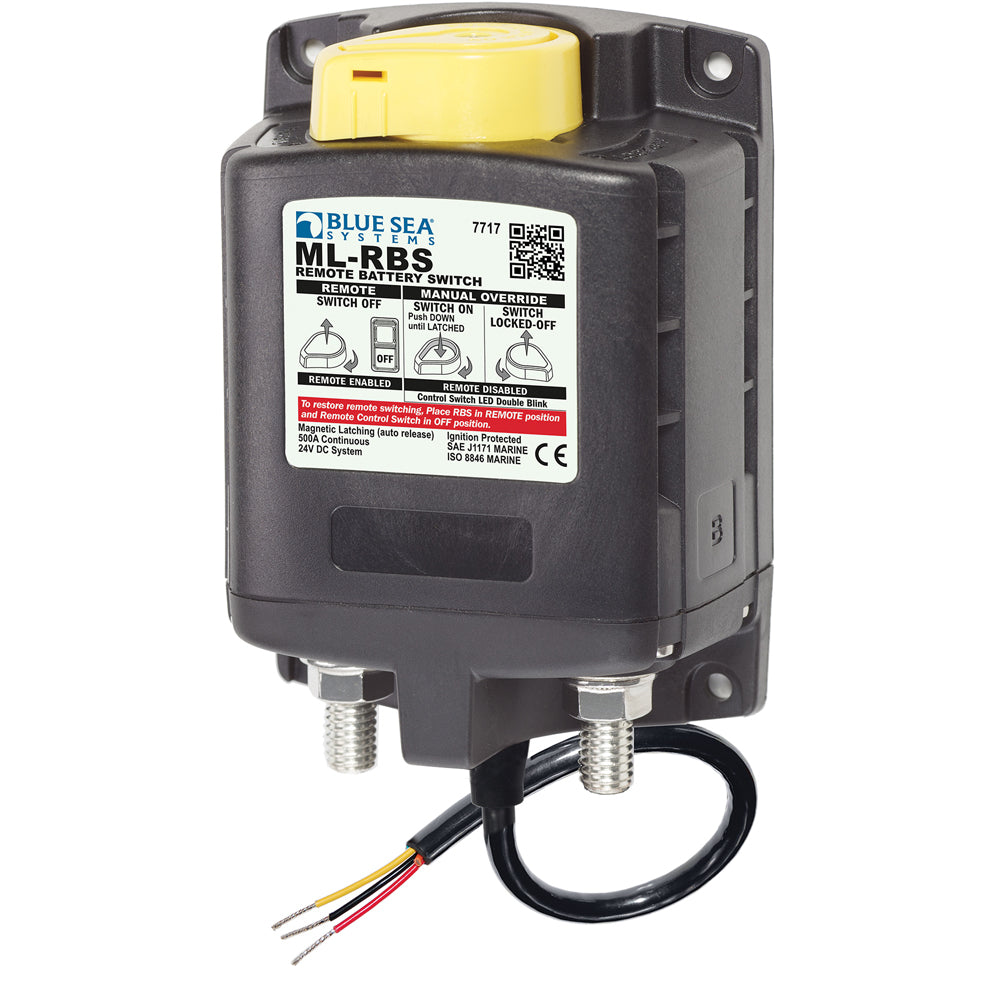

Blue Sea 7717 ML-RBS Remote Battery Switch w/Manual Control Auto-Release - 24V

ML-RBS Remote Battery Switch with Manual Control Auto-Release - 24V Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing LED output to remotely indicate switch state - requires optional LED 3/ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance 7/ 8" (22mm) stud length accepts multiple cable terminals Label recesses for circuit identification Silver alloy contacts provide high reliability for switching live loads Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired Specifications Control Circuit Connection: Tinned Wire Nominal Voltage: 24V DC Manual Control: Yes Coil Function: Auto releasing Mounting: #10 Amperage Operating Current: 8mA when OFF/13mA when ON Amperage Operating Current when changing state: Control Circuit Voltage: 20.2 to 32.9V DC Continuous Rating: 500A Intermittent Rating: 700A (5 min) Cranking Rating: 10 sec 2500A Cranking Rating: 1 min 1100A Minimum Operating Temperature: -10° C Maximum Operating Temperature: 50° C Cable Size to Meet Ratings: 2x (4/0) Live Current Switching: 300A @ 12V DC 10,000 Cycles Master Control Switch Capability: Yes Mechanical Endurance: 100,000 Cycles Switching Cycles: 100000 Terminal Ring Diameter Clearance: 1.18" (29.97mm) Terminal Stud Length: 0.875" (22.23mm) Terminal Stud Size: 3/8-16 (M10) Terminal Stud Torque: 140 in-lb (15.82 Nm) Weight: 1.75lb (0.79 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .
