Blue Sea Systems

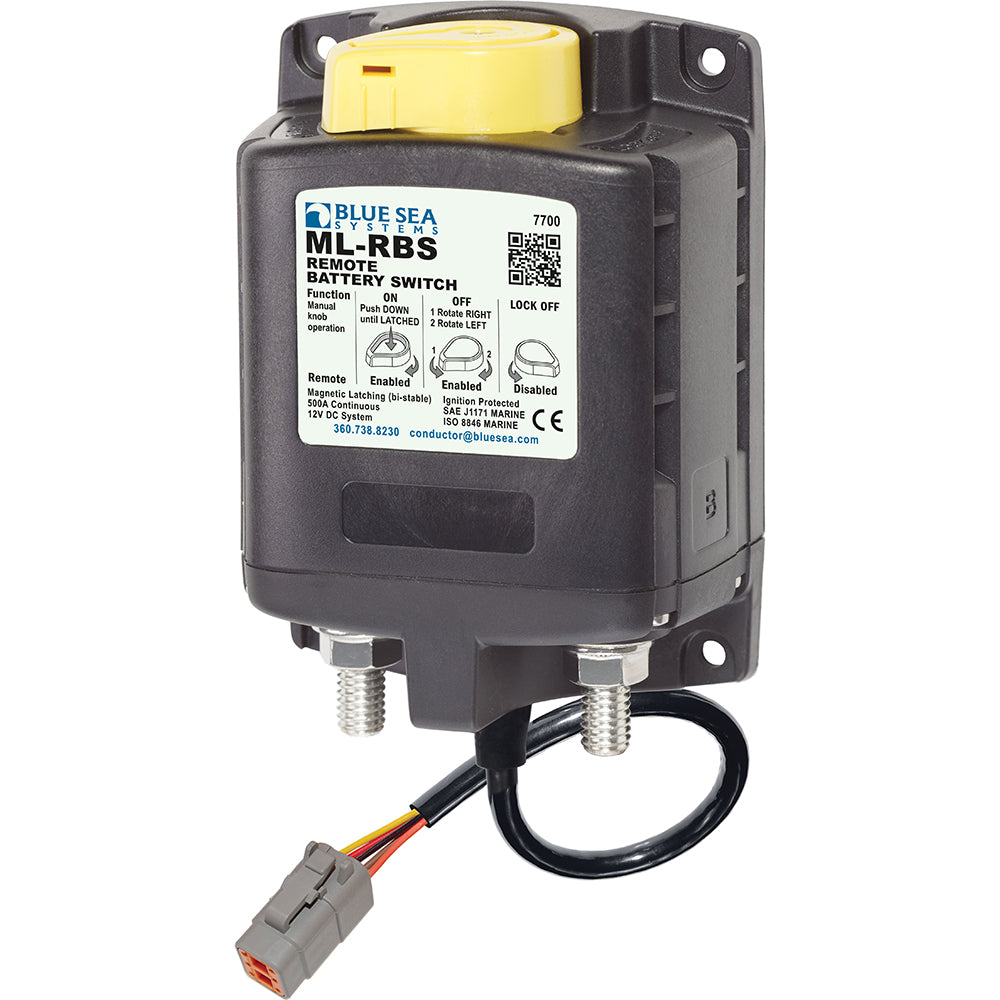

Blue Sea 7700100 ML Solenoid 12V 500A w/Manual Control & Deutsch Connector
Blue Sea 7700100 ML Solenoid 12V 500A w/Manual Control & Deutsch Connector
SKU:81410
In stock
Couldn't load pickup availability
- Genuine brand-name parts
- Ships from US warehouse
- 30-day returns
7700100 ML Solenoid 12V 500A with Manual Control & Deutsch Connector 500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations. Features: Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing LED output to remotely indicate switch state - requires optional LED 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance 7/8" (22 mm) stud length accepts multiple cable terminals Label recesses for circuit identification Silver alloy contacts provide high reliability for switching live loads Specifications: Control Circuit Connection: Deutsch DTM Nominal Voltage: 12VDC Coil Function: Bi-Stable Mounting: #10 Amperage Operating Current Continous: 0mA Terminal Stud Torque: 140 in-lb (15.82 Nm) Continuous Rating: 500A Intermittent Rating: 700A (5 min) Cranking Rating 30 Seconds: 1450A DC Cable Size to Meet Ratings: 2x (4/0) Live Current Switching: 300A@12VDC Master Control Switch Capability: No Mechanical Endurance: 100,000 Cycles Terminal Ring Diameter Clearance: 1.18" (29.97 mm) Terminal Stud Length: 0.875" (22.23 mm) Terminal Stud Size: 3/8" - 16 (M10) Weight: 1.75lb (0.79 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .
| Brand | Blue Sea Systems |
|---|---|
| Manufacturer part number | 7700100 |
| UPC / GTIN | 632085770013 |
| Weight | 2.55 lb |
| Category | Electronics & Audio |
| Condition | New — genuine brand-name product |
