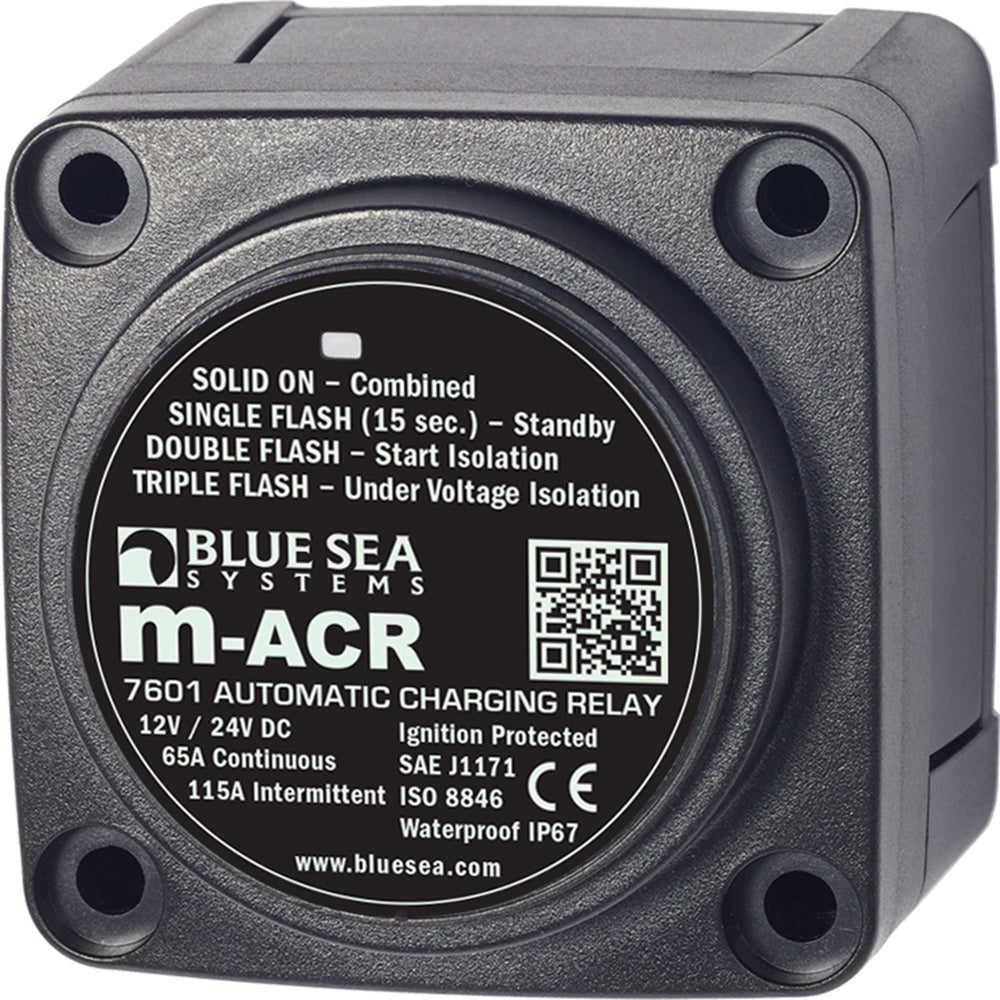

Blue Sea 7601 DC Mini ACR Automatic Charging Relay - 65 Amp

7601 DC Mini ACR Automatic Charging Relay - 65 Amp Features: 65 Amp continuous rating manages the charging current from alternators up to 65 Amps found on most outboards and many inboard engines Compact case design allows surface and panel mounting Senses charging on two battery banks Snap-on cover insulates terminal connections LED indicates ACR status 1/4" x .032" male quick connect terminal for ground 5/8" (16 mm) stud length to accept multiple cable terminals 12V DC voltage input Specifications: Intermittent Rating: 5 min.: 115A Terminal Stud Size: 1/4"-20 Relay Contact Position: Open (30 sec.): 12.75V DC Continuous Rating: 65A Maximum Torque: 75 in-lb (8.5 Nm) Relay Contact Position - Open High: 16.0V DC Amperage Operating Current: 175mA (Combine) Relay Contact Position: Combine (30 sec.): 13.0V DC Under Voltage Lockout: 9.5V DC Amperage Operating Current: 15mA (Open) Relay Contact Position: Combine (2 min.): 13.6V DC Maximum Cable Size: 1/0 AWG Relay Contact Position: Open (10 sec.): 12.35V DC WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .
