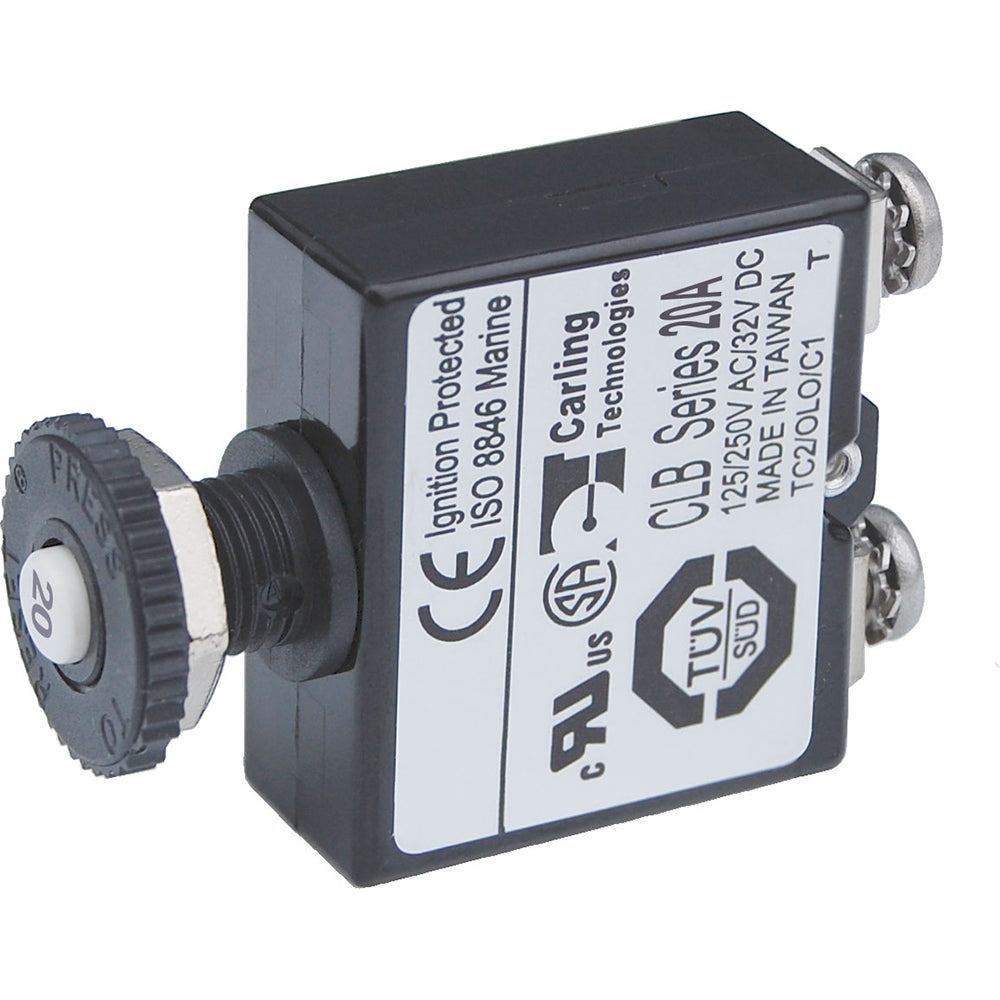

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 20 Amps

Push Button Reset Only Screw Terminal Circuit Breaker - 20 Amps Features: Branch circuit breakers (can also be used for 24-hour circuit protection) Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels Compact design enables high density circuit protection configurations Push-to-reset operation "Trip Free" design cannot be held "ON" during fault current condition Ignition protected - Safe for installation aboard gasoline powered boats Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking Specifications: Amperage: 20A Maximum Voltage: 32V DC Mounting: Panel Mount 3/8-27 UNS Circuit Breaker Type: Thermal trip, manual push-button reset only Terminal Type: #8 Screw Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V Minimum Operating Temperature: -10° C Maximum Operating Temperature: 60° C Screw Terminal Torque: 6 in-lb (0.68 Nm) Weight: 0.09lb (0.04 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .
