AIMS Power LFP12V100AREG Lithium Battery Voltage Regulator, 12V, 100A
AIMS Power LFP12V100AREG Lithium Battery Voltage Regulator, 12V, 100A
SKU:APW1007106
In stock
Couldn't load pickup availability
- Free shipping on $70+
- Ships from US warehouse
- 30-day returns
The AIMS Power LFP12V100AREG is a lithium battery voltage regulator, 12v, 100a.
Key features
- Alternator Charging Protection: Safely charges 12V lithium batteries from vehicle alternators while helping prevent overcharging
- 100 Amp Capacity: Supports alternators and other 12V DC charging sources up to 100 amps
- Battery Isolator Function: Automatically disconnects loads when voltage falls outside the safe operating range
- Solid State Protection: Monitors voltage continuously with automatic low and high voltage protection

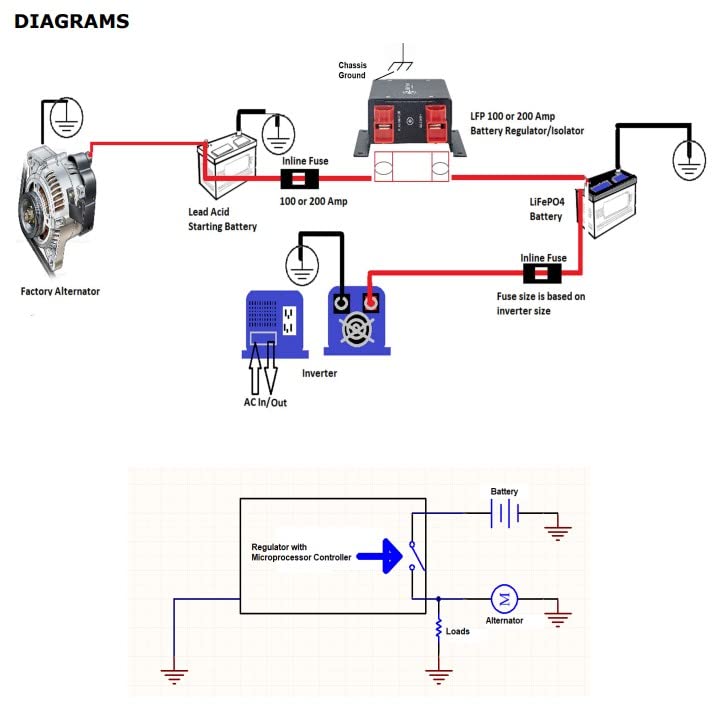

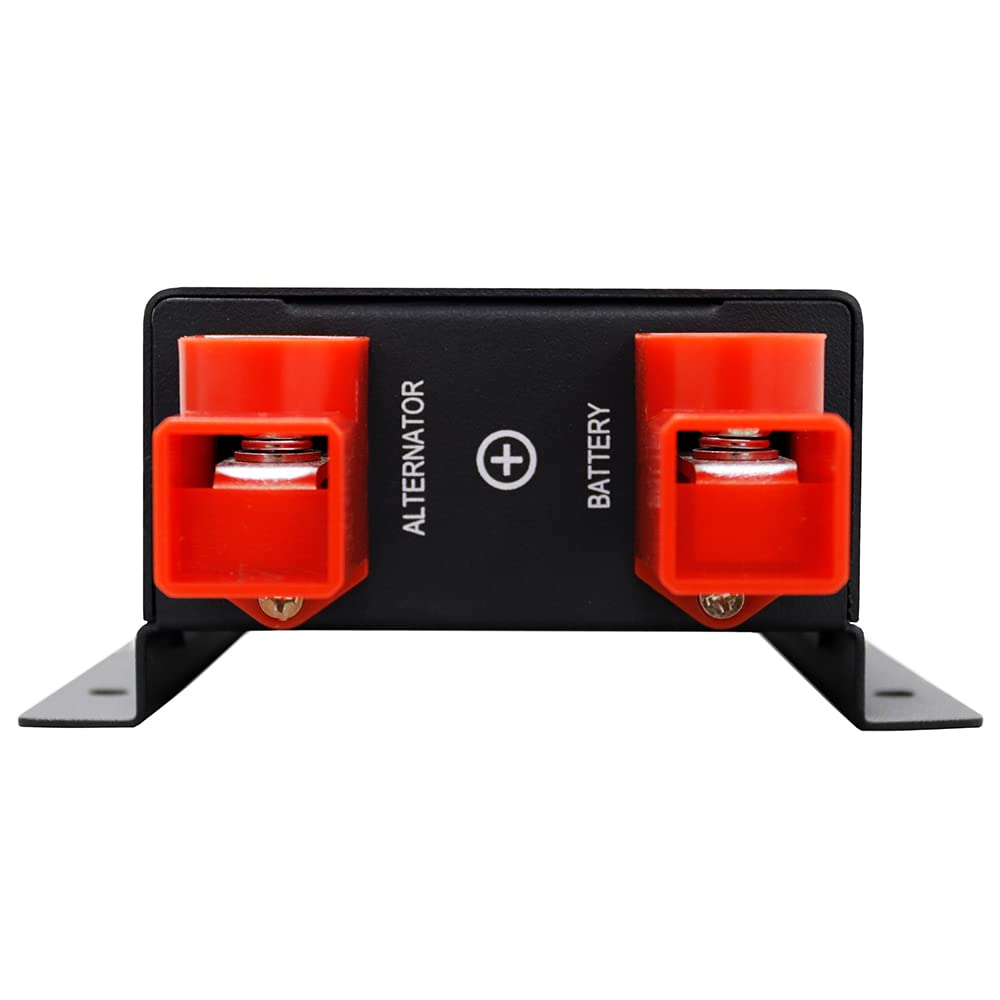

- Easy Installation: Compact two wire design with dedicated alternator connection simplifies installation
- Broad Compatibility: Works with lithium and other battery technologies in common 12V DC systems
- Automatic Recovery: Restores operation automatically when voltage returns to the normal operating range
- Versatile Applications: Suitable for vehicles, RVs, off road systems, wind, hydro, and mobile power applications
Product details
The AIMS Power LFP12V100AREG Lithium Battery Voltage Regulator provides a reliable solution for safely charging 12V lithium batteries from vehicle alternators and other 12V DC charging sources. Using solid state technology, the regulator continuously monitors system voltage and automatically disconnects the output whenever voltage falls outside the safe operating range, helping reduce the risk of battery overcharging or excessive discharge. Key Features: Safely charges 12V lithium batteries from vehicle alternators while helping prevent overcharging Supports alternators and other 12V DC charging sources up to 100 amps Automatically disconnects loads when voltage falls outside the safe operating range Monitors voltage continuously with automatic low and high voltage protection Works with lithium and other battery technologies in common 12V DC systems Suitable for vehicles, RVs, off road systems, wind, hydro, and mobile power applications Specifications: Regulator Type: Solid State Battery Voltage Regulator And Isolator System Voltage: 12V DC Maximum Current Rating: 100 Amps Input Voltage Range: 9.4V To 14.4V DC Low Voltage Disconnect: Below 9.2V DC High Voltage Disconnect: Above 14.6V DC Battery Compatibility: Lithium And Other Battery Technologies Alternator Port: Dedicated Alternator Connection Installation: Two Wire Configuration Automatic Reset: Yes Functions: Voltage Regulation, Battery Isolation, Low Voltage Protection, High Voltage Protection Applications: Vehicles
Before you order
- Check the group size, terminal layout and cold-cranking amps against your current battery.
Specifications
| Brand | AIMS Power |
|---|---|
| Manufacturer part number | LFP12V100AREG |
| Part type | Power Inverter |
| UPC / GTIN | 840271007106 |
| Weight | 3.00 lb |

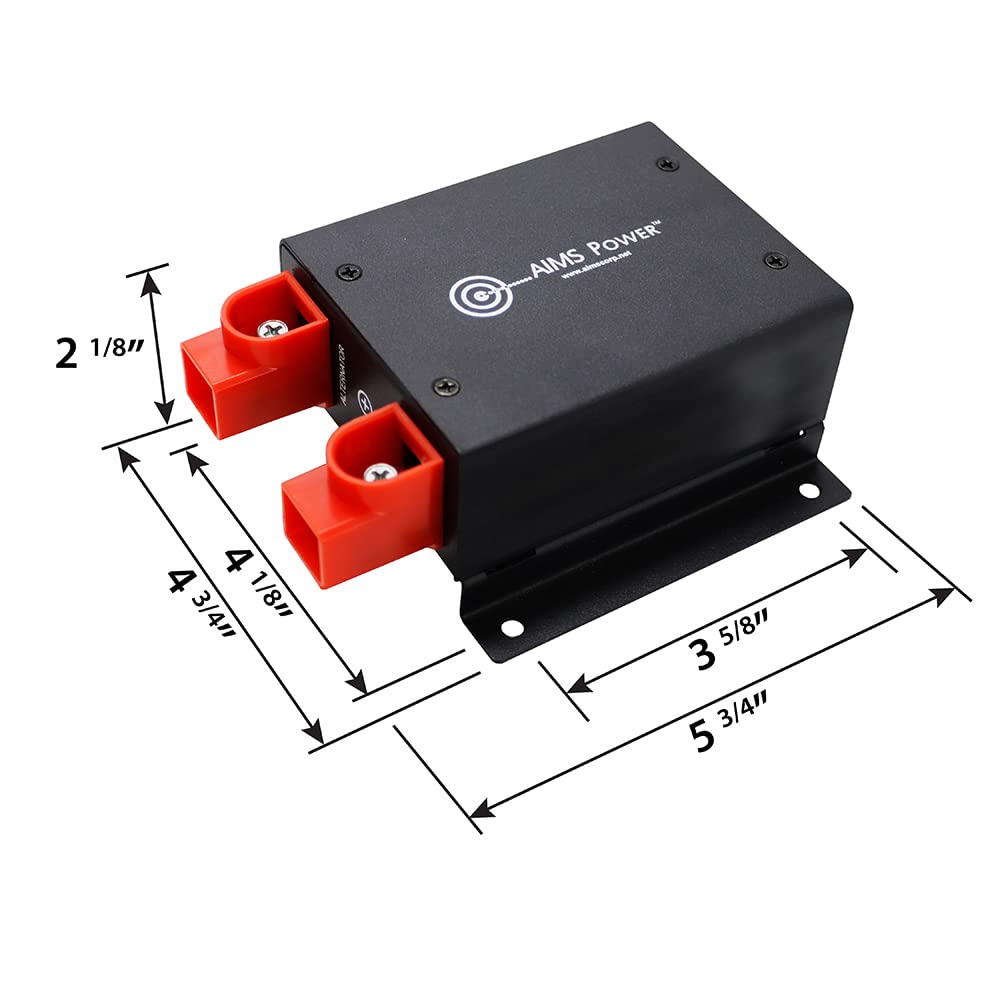

| Dimensions (L × W × H) | 10 × 10 × 4 in |
| Category | Electronics & Audio |
| Condition | New |
| Returns | 30-day returns on unused items |
